Potter Synchronization Control Module AVSM-R

Key Features

• Operates with S-24, HS-24, CS, and CHS series.
• Synchronize horn and strobe with the use of only twoWires.
• No limit to the number of modules that can be synchronized together.
• Module is rated for 3 amps continuous current and 5 amps surge or inrush current.
• Synchronizes to 1Hz flash rate.
• Operates 1 class 'A' circuit or 2 class 'B' circuits at 3 amps per circuit.
• Dual synchronization module ONLY when using 2 class 'B' circuits.
• A green LED status indicator to signal operation of module.
• Option to silence the horn while strobes continue to flash when using temporal 3 mode.
• The AVSM WILL NOT operate the ST/HS Series.

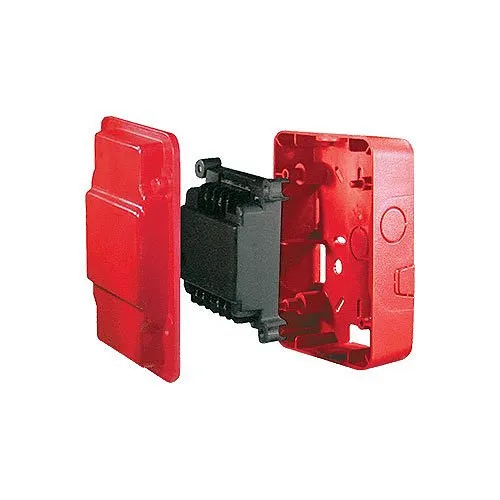

Enhance the synchronization of your fire safety system with the Potter AVSM-R Synchronization Control Module. This innovative module from Potter Electric Signal, LLC allows for easy synchronization of multiple horns, strobes, and horn/strobes using just two wires, ensuring a synchronized flash when needed. With the ability to silence the horn while the strobes continue flashing, this module provides efficient control over your signaling devices for optimal safety. The AVSM-R module comes complete with a back box and cover plate, featuring a green LED status indicator that flashes to indicate operational zones. Please note that strobes should not be utilized on coded or pulsing signaling circuits for best results.
