~$1200.00
VIEW AVAILABILITY ON EBAY
Fire-Lite Fire Amplifier ECC-50BDA
- Can be configured for three modes of operation:
- 50W Primary/50W Backup
- 100W Primary only

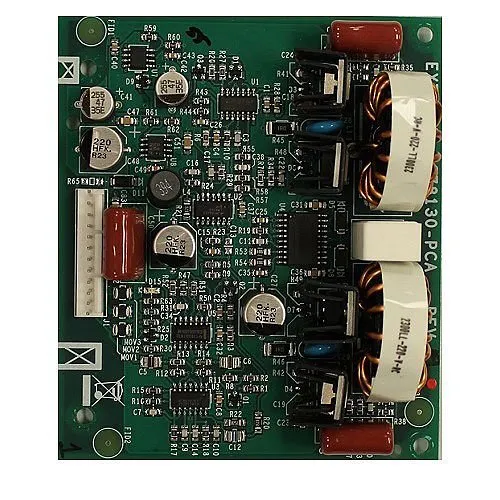

- 100W Primary/50 Watt Backup (ECC-50WBU installed)
- Each unit includes eight onboard fully supervised audio circuits
- Any combination of up to eight ECC-50DA(E)s, ECC-125DA(E)s or ECC-50DBAs per system for a total of 1100 watts of audio power and 24 speaker circuit outputs.
- Supports both Class A (Style Z) and Class B (Style Y) wiring.
- Easy setup and configuration by using a simple, built-in web based programming utility on the ECC-50/100(E)
- UL2572 (Communication and Control Units Mass Notification Systems).
- Built-in power supply and battery charger that supports up to 35AH. (For batteries larger than 18 AH, use the BB-26 or BB-55F Battery Box.)
Key Features
Enhance the safety of your facility with the Fire-Lite Alarms by Honeywell ECC-50BDA Fire Amplifier. This intelligent amplifier offers configurable 50 or 100 watts of total audio power for amplifying emergency voice evacuation messages. Featuring primary and backup power options, along with eight fully supervised speaker circuits/zones, this amplifier simplifies installation and reduces wiring demands, ensuring effective audio distribution throughout your space. Trust the ECC-50BDA for reliable and efficient fire safety communication.
Technical Specifications
| Brand Name | Fire-Lite Alarms by Honeywell |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | ECC-50BDA |
| Product Name | Intelligent Distributed Audio Amplifier |
| Product Series | ECC |
| Product Type | Fire Amplifier |
| Application/Usage | Auditorium, Command Center, Dormitory, Emergency, Factory, Healthcare, Military, Office Building, Place of Worship, Restaurant, School, Theater, Voice Evacuation System |
| Form Factor | Flush Mount, Surface Mount |
| Mount Type | Flush Mount, Surface Mount |
| Compatibility | Fire-Lite Alarms ECC-50/100(E) Emergency Command Center |
| Country of Origin | US |
| Features | Built-in power supply and battery charger that supports up to 35AH, Each unit includes eight onboard fully supervised audio circuits, Supports both Class A (Style Z) and Class B (Style Y) wiring. |
