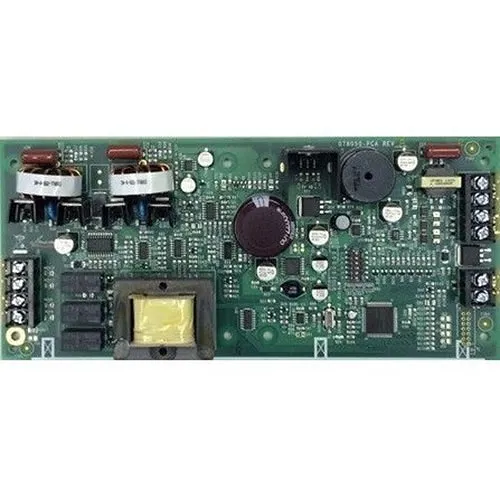

Silent Knight Fire Amplifier EVS-INT50W
- Mounts in 5820XL-EVS and 5895XL cabinets
- Powered by 24V DC constant auxiliary power
- 50W of audio power
- 1 Class A or Class B fully programmable speaker circuit
- 25 or 70.7 Vrms operation
- Two-wire connection to SBUS data
- Two-wire connection to VBUS
- UL Listed for 520Hz tone output when used with compatible speakers. See 5820XL-EVS installation manual LS10061-001SSK-E for list of compatible speakers
Key Features
Enhance your fire safety system with the Silent Knight by Honeywell EVS-INT50W Fire Amplifier. This powerful device delivers 50 watts of audio power on a single speaker circuit, ensuring clear and effective voice evacuation. Designed to seamlessly mount in the 5820XL-EVS cabinet, it simplifies installation for small-scale applications. Plus, the EVS-INT50W is both powered and supervised directly from the 5820XL-EVS, eliminating the requirement for extra AC sources and battery backups. Elevate your fire safety setup with this efficient and reliable fire amplifier.
Technical Specifications
| Brand Name | Silent Knight by Honeywell |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | EVS-INT50W |
| Product Line | IntelliKnight |
| Product Model | EVS-INT50W |
| Product Name | Intelligent 50 Watt Internal Amplifier |
| Product Series | EVS |
| Product Type | Fire Amplifier |
| Application/Usage | Amplifier, Emergency, Fire Alarm, Speaker |
| Depth | 1.8" |
| Form Factor | Cabinet Mount |
| Height | 10" |
| Weight | 2lb |
| Width | 4.5" |
| Mount Type | Cabinet Mount |
| Limited Warranty | 36-Month |
| Compatibility | Silent Knight 5820XL-EVS Fire Alarm Control Panel |
| Country of Origin | US |
