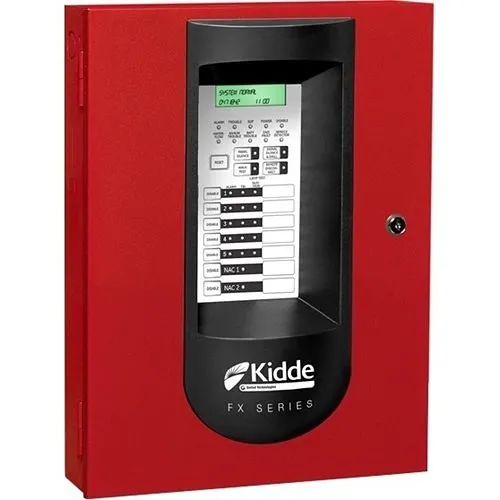

Kidde Fire Alarm Control Panel FX-5R
- Available in 5, and 10 zone (IDC) models
- CleanMe feature provides remote annunciation of a dirty detector
- Automatic drift compensation with select detectors reduces false alarms and extends dust life
- Listed to ANSI/UL 864 9th Edition
- Models with fully integrated upload/download DACT enables PC programming
- Zone or NAC pairs convertible to single Class A circuits
- Combination Waterflow and Supervisory IDCs
- NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded
- Front panel programmable simplifies installation and servicing
- Precision synchronization with compatible notification appliances and optional audible silence over two wires
Key Features
Discover the Kidde Commercial FX-5R Fire Alarm Control Panel, a reliable solution for fire safety in commercial settings. This conventional fire alarm system features up to 5 zones, optional integrated DACT, and intelligent detector capabilities. With components listed to the ANSI/UL 864 standard and approved by CSFM/FDNY, you can trust in the quality and compliance of this essential life safety equipment.
Technical Specifications
| Brand Name | Kidde Commercial |
|---|---|
| Manufacturer | Carrier |
| Manufacturer Part Number | FX-5R |
| Product Model | FX-5R |
| Product Name | 5 Zone Fire Alarm Panel Red 120VAC Power Source, 24VDC Output |
| Product Series | FX |
| Product Type | Fire Alarm Control Panel |
| Connectivity Technology | Wired |
| Number of Relays Supported | 9 |
| Number of Standard Zones | 5 |
| Panel Control Type | Conventional |
| Display Type | LCD |
| Color | Red |
| Input Voltage | 120V AC, 24V DC |
| Country of Origin | CN |
