~$184.52
VIEW AVAILABILITY ON EBAY

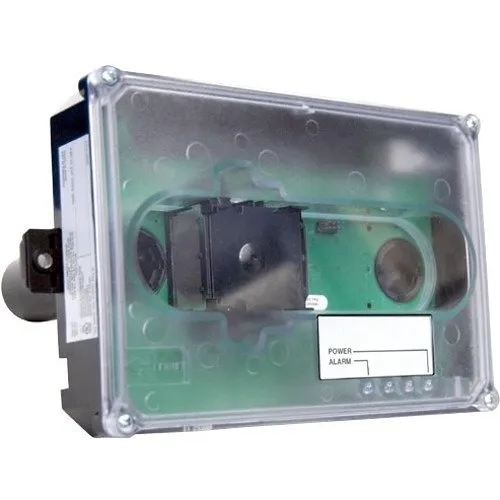

Edwards Smoke Detector FX-PDD
- Less than 2" deep for easy installation and applicationsWhere space is tight
- Status LEDs remain visible through clear assembly cover
- Standard sAling tube spacing for easy drop-in migration from other detectors
Key Features
The Edwards Signaling FX-PDD Smoke Detector is designed for easy installation in tight spaces, measuring less than 2" deep. With an operating range of 32 to 120 °F and an air velocity rating of 100 ft/min. to 4,000 ft/min, this detector ensures reliability in harsh conditions. Featuring status LEDs visible through a clear cover, a cover monitor switch for added security, and a magnet-activated test switch, the FX-PDD offers environmental compensation and differential sensing for stable sensitivity. Its versatile design allows for easy migration from other detectors, with standard sampling tube spacing and the option to install the tube with or without the cover.
Technical Specifications
| Brand Name | Edwards Signaling |
|---|---|
| Manufacturer | Carrier |
| Manufacturer Part Number | FXPDD |
| Package Length | 9.400000000 |
| Product Name | Intelligent Addressable Duct Smoke Detector |
| Product Type | Smoke Detector |
| Addressable | Yes |
| Connectivity Technology | Wired |
| Detectable Medium | Smoke |
| Sensing Technology | Photoelectric |
| UL Listed | Yes |
| Status Indicators | Yes |
| Depth | 1.9" |
| Height | 5.5" |
| Width | 8.7" |
| Input Voltage | 19.95V DC |
| Power Source | AC, DC |
| Country of Origin | CN |
