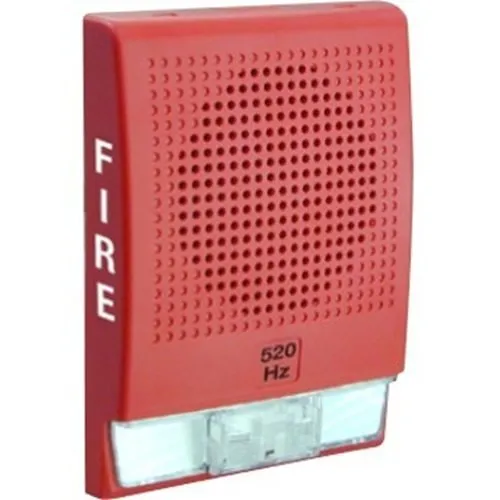

Edwards Horn Strobe G4LFRF-HVM
- G4LF series horns and horn strobes produce a low frequency (520 Hz) tone suitable for sleeping areas.
- G4LF Series audible output remains synchronized with all Genesis audible signals on the same Notification Appliance Circuit, including standard 3.2 kHz Genesis audible signals.
- Horns have jumper selections for high/low dB output asWell as temporal or steady tone (high dB, temporal toneΒ is factory default).
- Unique low-profile design
- Choice of colors and markings
- Easy to install
- Easy to configure without removing the device
Key Features
Enhance life safety with the Edwards Signaling G4LFRF-HVM Horn Strobe, offering a crisp 520 Hz tone in a 3-3 temporal pattern, ideal for sleeping areas and other applications requiring low frequency audible tones. This high-performance appliance can be configured for continuous audible output, critical for coded notification circuits, and features field-configurable high and low dB settings. When connected to compatible Edwards control equipment, the G4LF Series ensures synchronized audible output with all Genesis signals on the same circuit, including 3.2 kHz tones. Choose from audible-only models or combination audible-visible signals with Genesis FullLightTM strobe technology for consistent illumination that exceeds UL-1971 requirements, all in a sleek, easy-to-install design
Technical Specifications
| Brand Name | Edwards Signaling |
|---|---|
| Manufacturer | Carrier |
| Manufacturer Part Number | G4LFRF-HVM |
| Product Line | Genesis |
| Product Model | G4LFRF-HVM |
| Product Name | Low Frequency 520 Hz Horn Strobe, Red, FIRE Markings |
| Product Series | G4LF |
| Product Type | Horn Strobe |
| Alarm Type | Audible, Visual |
| Application/Usage | Indoor |
| Connectivity Technology | Wired |
| Material | Plastic |
| Sound Emission | 75 dB |
| Color | Red |
| Depth | 1" |
| Durability | UV Resistant |
| Form Factor | Ceiling Mount, Flush Mount, Surface Mount, Wall Mount |
| Height | 6.5" |
| Lens Color | Clear |
| Width | 5" |
| Input Voltage | 24V DC |
| Power Source | DC |
| Bulb/Tube Type | Xenon |
| Mount Type | Ceiling Mount, Flush Mount, Surface Mount, Wall Mount |
| Features | Candela Switch, Synchronization, Textured |
| Indoor/Outdoor | Indoor |
| Package Contents | Low Frequency 520 Hz Horn Strobe, Red, FIRE MarkingsMounting Spacer |
