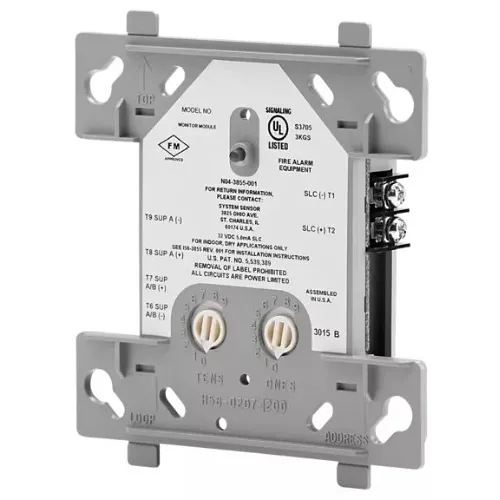

Fire-Lite Input Monitor Module MMF-300
- 15 to 32V DC
- Built-in type identification automatically identifies this device as a monitor module to the control panel.
- Powered directly by two-wire SLC loop. No additional power required.
- SEMS screws with clamping plates for ease of wiring.
- Direct-dial entry of address: 01 – 159 on MS-9600 series panels, 01 – 99 on other compatible systems.
- LED flashes during normal operation and latches on steady to indicate alarm.
Key Features
Introducing the MMF-300 Input Monitor Module by Fire-Lite Alarms, a Honeywell company. This module is designed for intelligent, two-wire systems, allowing for individual address selection via built-in rotary switches. It features a two-wire or four-wire fault-tolerant Initiating Device Circuit (IDC) for fire alarm and supervisory devices, along with a panel-controlled LED indicator. The MMF-300 is a versatile replacement for M300 modules in existing systems, suitable for supervising Style D (Class A) or Style B (Class B) circuits of dry-contact input devices. Upgrade your fire safety system with this reliable and efficient monitor module today.
Technical Specifications
| Brand Name | Fire-Lite Alarms by Honeywell |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | MMF-300 |
| Product Model | MMF-300 |
| Product Name | MMF-300 Monitor Module |
| Product Series | MMF |
| Product Type | Input Monitor Module |
| Device Supported | Control Panel |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Depth | 1.3" |
| Height | 4.5" |
| Width | 4" |
| Input Voltage | 32V DC |
| Additional Information | EOL Resistance:47K Ohms.Maximum IDC Resistance:1,500 OhmsHumidity:10% to 93% Noncondensing |
| Country of Origin | MX |
