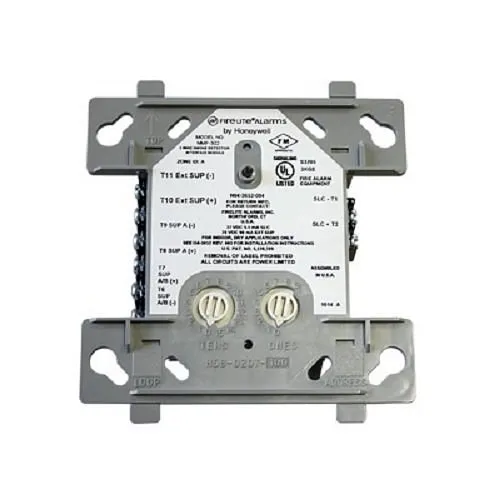

Fire-Lite Addressable Monitor Module MMF-302

Key Features

• MMF-300(A) is a standard-sized module that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.
• MMF-301(A) is a miniature monitor module a mere 1.3" (3.302cm) used to supervise a Style B (Class B) circuit of dry-contact input devices.
• MMF-302(A) is a standard-sized module used to monitor and supervise compatible two-wire, 24 volt, smoke detectors on a Style D (Class A) or Style B (Class B) circuit.
• MDF-300(A) is a standard-sized dual monitor module used to monitor and supervise two independent two-wire Style B (Class B) dry-contact initiating device circuits (IDCs) at two separate, consecutive addresses.
• Built-in type identification automatically identifies these devices as a monitor module to the control panel.

Enhance the safety of your building with the Fire-Lite Alarms by Honeywell Addressable Monitor Module (Model: MMF-302). This module is compatible with the MS-9050UD, MS-9200UDLS, and MS-9600 fire alarm control panels, offering versatile monitoring capabilities for various applications. Easily supervise dry-contact input devices like heat detectors and pull stations, or power a circuit of two-wire smoke detectors for comprehensive fire protection. Trust in this reliable solution to enhance your fire safety system.

Technical Specifications
