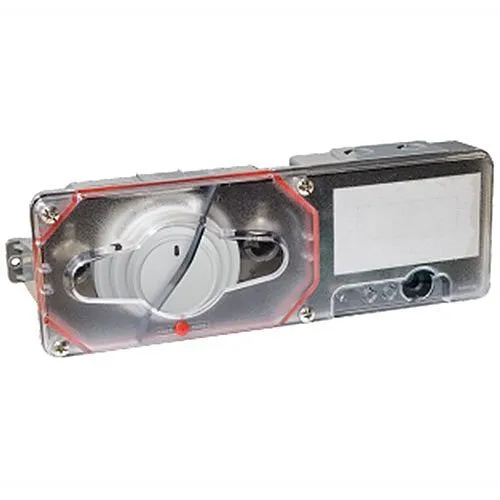

Potter Smoke Detector PAD300-DUCT
- Detects smoke in building HVAC ducts
- UUKL Listed for Smoke Control
- Integrated cover tamper switch
- Complete with housing and head
- Compatible with Addressable IPA and AFC/ARC Series Panels
- SLC In-and-out wire terminals
- SLC Class A, Class X and Class B
- Installation without removing the head
- Listed Air Velocity of 100' to 4,000' per minute
- No screens or filters in housing and durable Plastic enclosure and clear cover
Key Features
The Potter Electric Signal, LLC PAD300-DUCT smoke detector is expertly crafted to comply with all local regulations and NFPA guidelines for duct smoke detectors. Featuring dual air sampling tubes extending into the duct, this unit includes a 7" exhaust tube in the installation kit. For a precise fit, sampling tubes are available in 2.5', 5', and 10' lengths, easily customizable to match duct dimensions. Installation is a breeze with a template, sheet metal screws, and a clear cover secured by four capture screws, ensuring seamless mounting without cover removal.
Technical Specifications
| Brand Name | Potter Electric Signal, LLC |
|---|---|
| Manufacturer | Potter Electric Signal, LLC |
| Manufacturer Part Number | PAD300-DUCT |
| Package Length | 13.500000000 |
| Product Model | PAD300-DUCT |
| Product Name | Analog Addressable Duct Detector |
| Product Type | Smoke Detector |
| Addressable | Yes |
| Application/Usage | Building, Commercial, HVAC, Industrial, Residential |
| Connectivity Technology | Wired |
| Detectable Medium | Fire, Gas |
| Material | Plastic |
| Sensing Technology | Photoelectric |
| UL Listed | Yes |
| Status Indicators | Yes |
| Color | Gray, Transparent |
| Height | 2.3" |
| Weight | 2lb |
| Width | 4.5" |
| Input Voltage | 24V DC |
| Power Source | DC |
| Length | 13.5" |
| Limited Warranty | 5-Year |
| Certifications & Standards | UL Listed |
| Compatibility | Potter Addressable IPA and AFC/ARC Series Panels |
| Country of Origin | CN |
| Package Contents | Analog Addressable Duct Detector Installation Kit 1 x 7" Exhaust Tube 2.5ft Sampling Tube 5ft Sampling Tube 10ft Sampling Tube 2 x Sheet Metal Screw 4 x Capture Screw |
