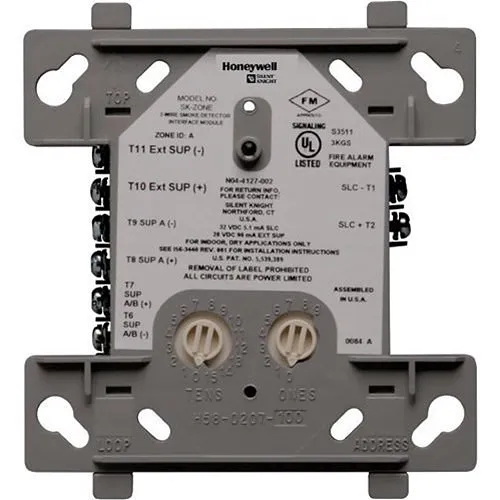

Silent Knight Zone Interface Module SK-ZONE
- SLC Standby & Alarm Current: .27mA max. at 24V DC with communication
- End-of-Line Resistance: 3.9kW
- Standby Current: 12mA at 24V DC (nominal)
- 2-Wire
- Mounts directly into a 4" square electrical box.
Key Features
Enhance your fire safety system with the Silent Knight by Honeywell SK-ZONE Zone Interface Module. This intelligent two-wire module seamlessly integrates with Silent Knight Series fire alarm control panels, allowing for the monitoring of two-wire conventional smoke detectors. With its panel-controlled status LED, rotary address switches for quick setup, and full supervision capabilities, the SK-ZONE ensures efficient and reliable performance. Easy to install in a standard 4" square electrical box, this UL-listed module is a must-have for ensuring the safety of your property.
Technical Specifications
| Brand Name | Silent Knight by Honeywell |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | SK-ZONE |
| Product Model | SK-ZONE |
| Product Name | SK-ZONE Addressable Zone Interface Module |
| Product Type | Zone Interface Module |
| Connectivity Technology | Wired |
| Device Supported | Control Panel |
| Maximum Operating Temperature | 120°F (48.9°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Color | Green, Red |
| Depth | 1.3" |
| Height | 4.5" |
| Width | 4" |
| Input Voltage | 32V DC |
| Additional Information | SLC Standby & Alarm Current: .27mA max. @ 24VDC with communication End-of-Line Resistance: 3.9kW Standby Current: 12mA @ 24 VDC (nominal) |
| Compatibility | Honeywell Silent Knight Fire Alarm Control Panels: 6820 6820EVS 6808 6700 5700 5808 5820XL 5820XL-EVS |
| Country of Origin | MX |
