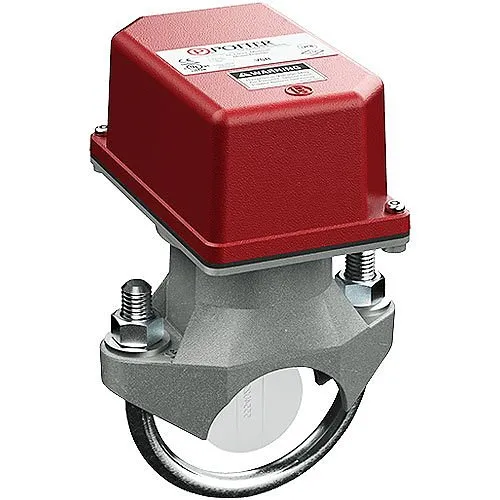

Potter Waterflow Switch VSR-6

Key Features

• UL, CUL and CSFM Listed, FM Approved, LPCB Approved, For CE Marked
• Flow Sensitivity Range for Signal: 4-10 GPM (15-38 LPM) - UL
• Conduit Entrances: Two knockouts provided for 1/2 conduit. Individual switch compartments suitable for dissimilar voltages.
• Easy to read retard time delay adjustment knob
• Two SPDT (form C) contacts
• Easy to read wire terminal designations

Discover the Potter Electric Signal, LLC VSR-6 Waterflow Switch, a vane type switch designed for wet sprinkler systems. This UL Listed and FM Approved device is suitable for steel pipes ranging from schedules 5 to 40, with sizes from 2" to 8" (50 mm to 200 mm). Additionally, LPC approved sizes are available from 2" to 8" (50 mm to 200 mm). Equipped with two single pole, double throw switches and an adjustable pneumatic retard, the VSR-6 activates at a flow rate of 10 GPM (38 LPM) or higher downstream. Housed in a durable die-cast enclosure with tamper-resistant screws, this switch ensures reliable water

Technical Specifications
